Self-Stacking Spiral Freezers: The Future of Clean-Label Food Safety

1. The Death of the “Cage”

For decades, the “Low-Tension” drum freezer was the industry standard. However, the requirement for a central drum cage meant thousands of moving parts, drive bars, and heavy lubrication. The Self-Stacking Spiral Freezer eliminates the drum entirely. The belt itself is the support structure.

2. How Self-Stacking Spiral Freezer Works

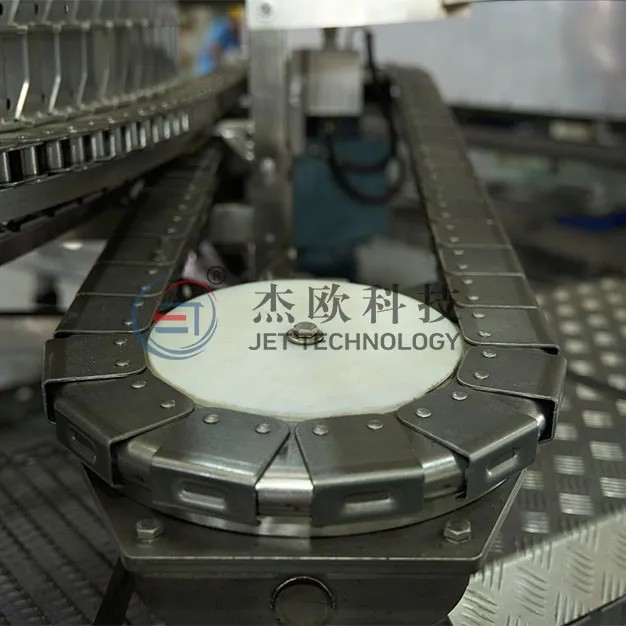

In a self-stacking system, the side links of the belt are designed to nest into one another. This creates a “closed” self-contained stack that acts as its own air duct.

The Air Chimney Effect: Because the belt side-links form a solid wall, the cold air is forced to pass through the belt levels in a vertical “chimney” fashion. There is no air leakage, making it 25% more energy-efficient than traditional spirals.

Technical Comparison: Self-Stacking vs. Traditional Spiral

3. Industry Insight: The “Black Speck” Problem

In bakery and high-fat meat processing, “black specks” (a mix of metal wear and oxidized grease) are a common cause of product recalls. In a traditional spiral, the friction between the belt and the rail is the culprit.

JET's Solution: By using a self-stacking design, we eliminate the friction rail. The “Zone 1” area—the area directly above the food—contains zero moving drive parts that require grease. This is the single most important feature for companies exporting to the EU or North American markets.

4. Advanced Control Systems (IIoT Integration)

Modern food factories require data for traceability. JET Self-Stacking freezers come equipped with:

• PLC Monitoring: Real-time tracking of belt tension, air temperature, and motor load.

• Remote Diagnostics: Our engineers can log in from our HQ to troubleshoot your PLC (Siemens S7-1500 or Allen-Bradley) if you experience a downtime event.

• Energy Dashboard: Track kWh per ton of product frozen to optimize your shift schedules.

5. Why Choose JET Over JBT?

While JBT Frigoscandia's GYROCOMPACT is a fantastic machine, JET Freezer offers a more flexible engineering approach. We utilize the same high-quality stainless steel (304/316) and world-class components (SEW Eurodrive, Danfoss valves) but at a price point that allows mid-sized processors to access “Tier 1” technology without the “Tier 1” brand premium.
