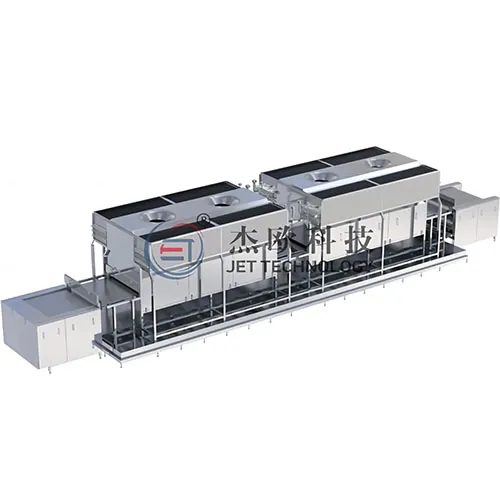

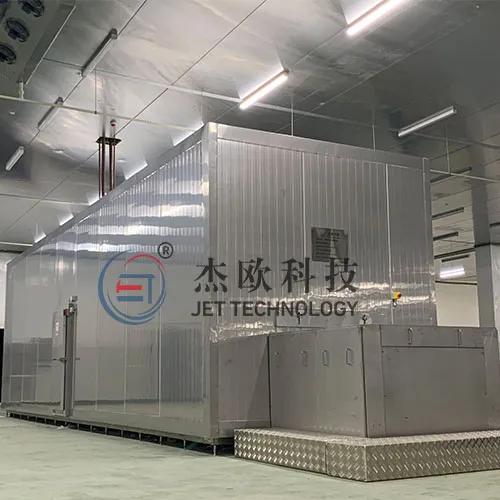

JET Technology's high-efficiency impingement tunnel freezer is designed according to a unique European concept, embodying the precision engineering of a world-class impingement freezer.

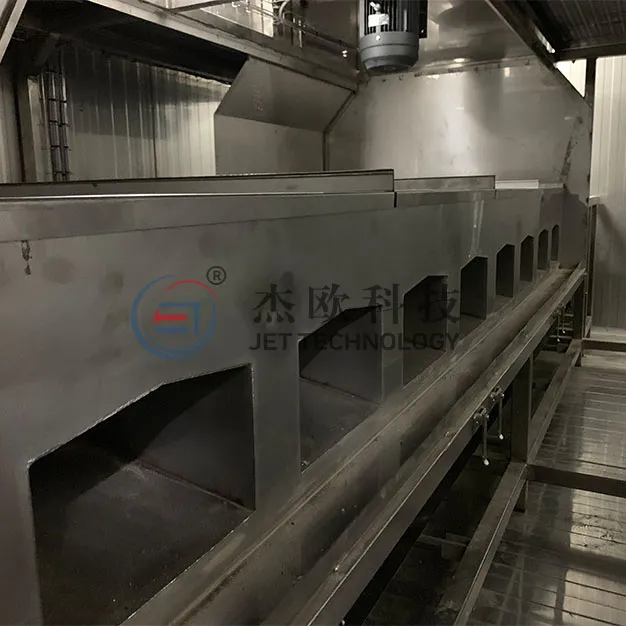

Cool airflow flows within the enclosure, and a specially designed air tunnel is in place.
Thousands of high-speed air jets are aimed at both the top and bottom surfaces of the product as it travels along the conveyor of the freezer.
These air jets disrupt the layer of air that retains heat around the product, leading to remarkably quick freezing times.
The impingement tunnel freezer is especially suitable for the quick freezing of flat food: shrimp products, fish fillets, hamburger patties and other thin food, as the core advantages of the impingement freezer align perfectly with the freezing needs of such flat and thin ingredients.
High-Speed Airflow: The impingement freezer and mesh belt tunnel freezer leverage vertical high-speed impact airflow to significantly reduce freezing time, while the vertical plate freezer and horizontal plate freezer optimize heat transfer efficiency through their compact plate structure for comparable rapid freezing performance.
Surface Hardening: The surface of the food quickly hardens and forms a crust, effectively locking in internal moisture and minimizing moisture loss in frozen food.
Quality Preservation: Rapid freezing technology, a shared strength of the impingement freezer, mesh belt tunnel freezer, vertical plate freezer, and horizontal plate freezer, generates no large ice crystals. This maintains the food’s original quality as much as possible and keeps it fresh after thawing.
Efficient Space: Higher freezing efficiency reduces the required length and equipment space.

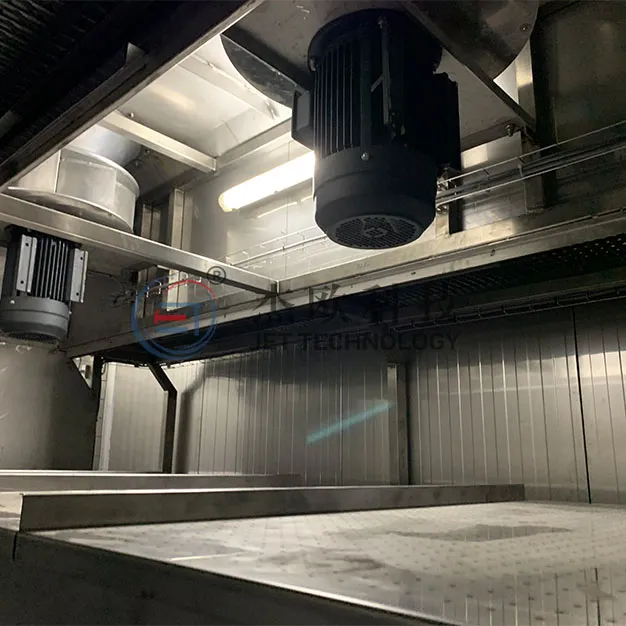

Frost Prevention: The fan is positioned on the 'dry side' of the evaporator to minimize frost formation and prolong continuous operation.
Modular Flexibility: The impingement freezer and mesh belt tunnel freezer adopt a modular design that simplifies installation and re-allocation, offering flexibility to expand operations by adding new modules to the existing system. This modular advantage is also integrated into advanced vertical plate freezer and horizontal plate freezer models for scalable production.
Easy Cleaning: The all-welded stainless steel base plate features a simple design that is easy to clean, ensuring better compliance with sanitary standards.
| Model | Dimension (mm) | Base Load (KW) | Fans Quantity | Freezing Capacity (kg/h) | Belt width (mm) | Product Height Limit (mm) |
| JNB-H1208 | 8000x3500x2700 | 25 | 4 | 250 | 1200 | Standard 50 |
| JNB-H1215 | 15000x3500x2700 | 41 | 7 | 500 | 1200 | |
| JNT-H500 | 12000x3800x3240 | 29 | 5 | 500 | 1500 | |
| JNT-H750 | 16000x3800x3240 | 41 | 7 | 750 | 1500 | |
| JNT-H1000 | 20000x3800x3240 | 52 | 9 | 1000 | 1500 | |
| JNT-2H750 | 16000x7480x3240 | 82 | 14 | 1500 | 1500 | |
| Referenced product | Raw dumplings | Infeed temperature: 20℃, Outfeed temperature: -18℃ | ||||
| JNI-1M1250 | 5500x3500x2970 | 24 | 2 | 500 | 1250 | Standard 35 |
| JNI-1M1800 | 5500x4000x2970 | 46 | 3 | 1000 | 1800 | |
| JNI-2M1250 | 11000x3500x2970 | 46 | 4 | 1000 | 1250 | |
| JNI-3M1250 | 16000x3500x2970 | 68 | 6 | 1500 | 1250 | |
| Referenced product | Hamburger patty | Infeed temperature: 4℃, Outfeed temperature: -18℃ | ||||
| Note: JNI series are all with European technology, advanced technology, and equipped with an automatic defrosting system. | ||||||
Get a free, customized quick-freezing production line plan by our professional technical team--designed for efficiency and intelligence.
